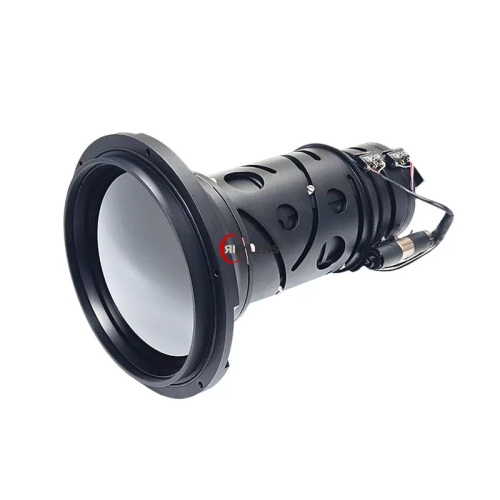

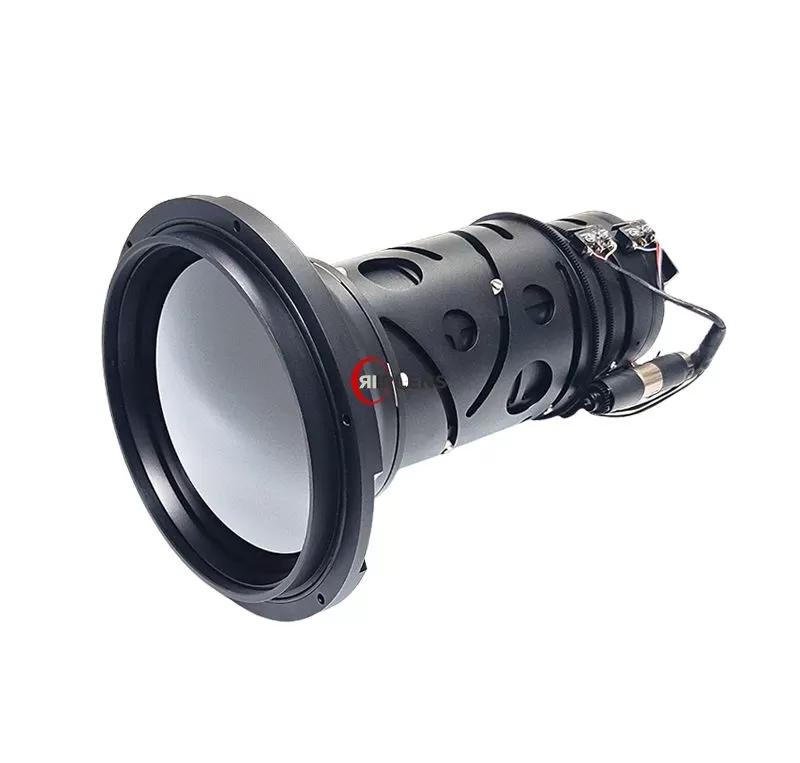

25mm～225mm F1.0～1.5 Ucooled Continuous Zoom
25mm～225mm F1.0～1.5 Ucooled Continuous Zoom
Product Description
The uncooled continuous zoom infrared thermal imager is a mature and highly reliable product independently developed by our company that complies with ISO standards. It uses high-quality materials and advanced manufacturing technology. Thermal imagers have the characteristics of strong thermal imaging capability, high image quality, fast response speed, and good compatibility.
Details Parameters
Advanced technologies for the highest performance long-wave focal planes:
1.High-durability and hard-carbon 8-14 µm LWIR wavelength DLC exposed mirror coating.
2.High precision manufacturing processes and strict quality control procedures ensure stable imaging in various practical use environments.
3.Optimized for 1280x1024 LWIR cameras with 12 μm pixel pitch.
4.Motorized focus and zoom mechanism with crisp image over the full range.
| Specifications | ||
| OPTICAL | ||
| Focal Length / F# | 25~225mm F/1.0~1.5 | Compatible with detectors having 25mm ≥ EFL≤225mm |
| Detector (FPA) type | 1280×1024-12μm | |
| Working Spectral Band(SR) | 8um-14um | |
| FOV | 34.15°×27.61°～3.91°×3.13° | |
| Exposed Mirror Coating | DLC | AR and HD are available upon request |
| Imaging Range | 25m to infinity | |
If you are a distributor, trader, factory, or research institution, we look forward to collaborating with you to provide the best LWIR lens solutions. Please feel free to contact IRLENS to learn more about our products and customization services.
