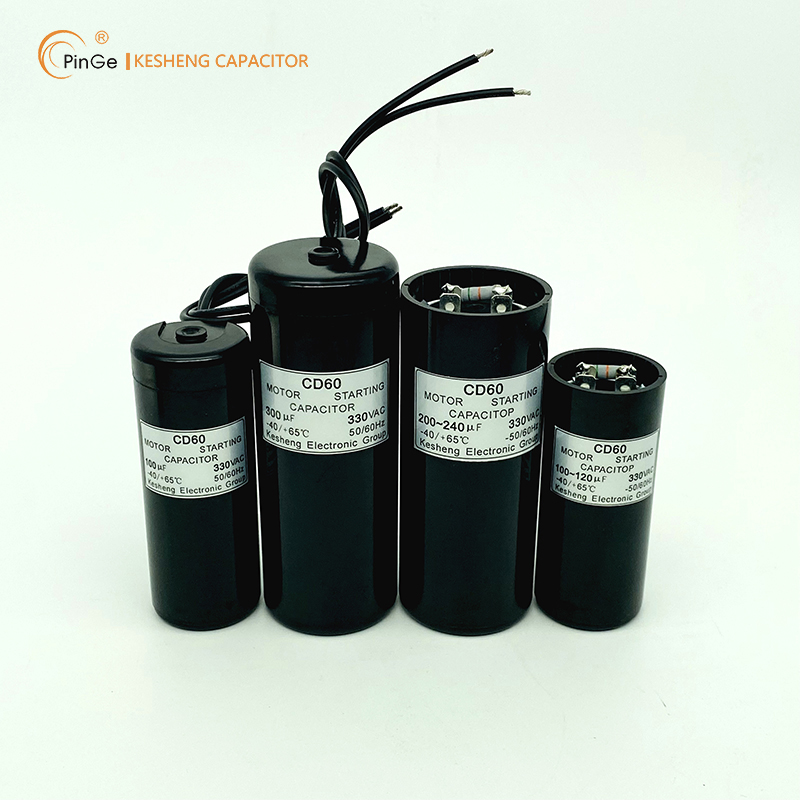

CD60 Aluminum Electrolytic Capacitors Wire Lead Type
■ Non-inductance winding structure
■ Excellent self-healing performance
■ Small equivalent series resistance
■ Low temperature rise
■ Stable performance,high reliability
Specification
|
Reference standards |
GB/T3667.1, UL810, EN60252-1 |
|
Rated voltage UN |
110~330VAC |
|
Rated capacitance CR |
21~1536uF |
|
Capacitance tolerance |
0~20% |
|
Operating temperature |
-40℃~+65℃ |
|
Storage temperature |
-40 / 70℃ |
|
Dissipation factor (DF) |
20 x 10-4 at 20°C, 50 Hz |
|
Insulation resistance(IR) |
≥2000MΩ .μF (500Vdc,60s) |
|
Voltage test between terminals (Ut-t) |
2 x UN for 5 s |
|
Voltage test between terminals with case |
2200 Volt for 2 s |
|
Expected life |
2000 hours |
|
Dielectric material |
Paper pulp |
|
Terminal |
Lead wire |
|
Case |
Al 99.5% |
|
Filling |
Glycol +Organic acid salt |
|
Remarks :When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered. |
|
