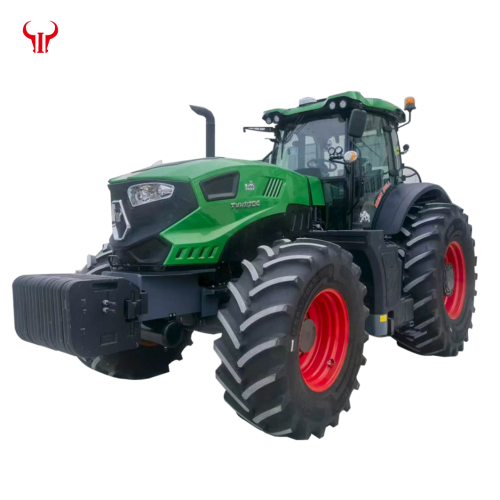

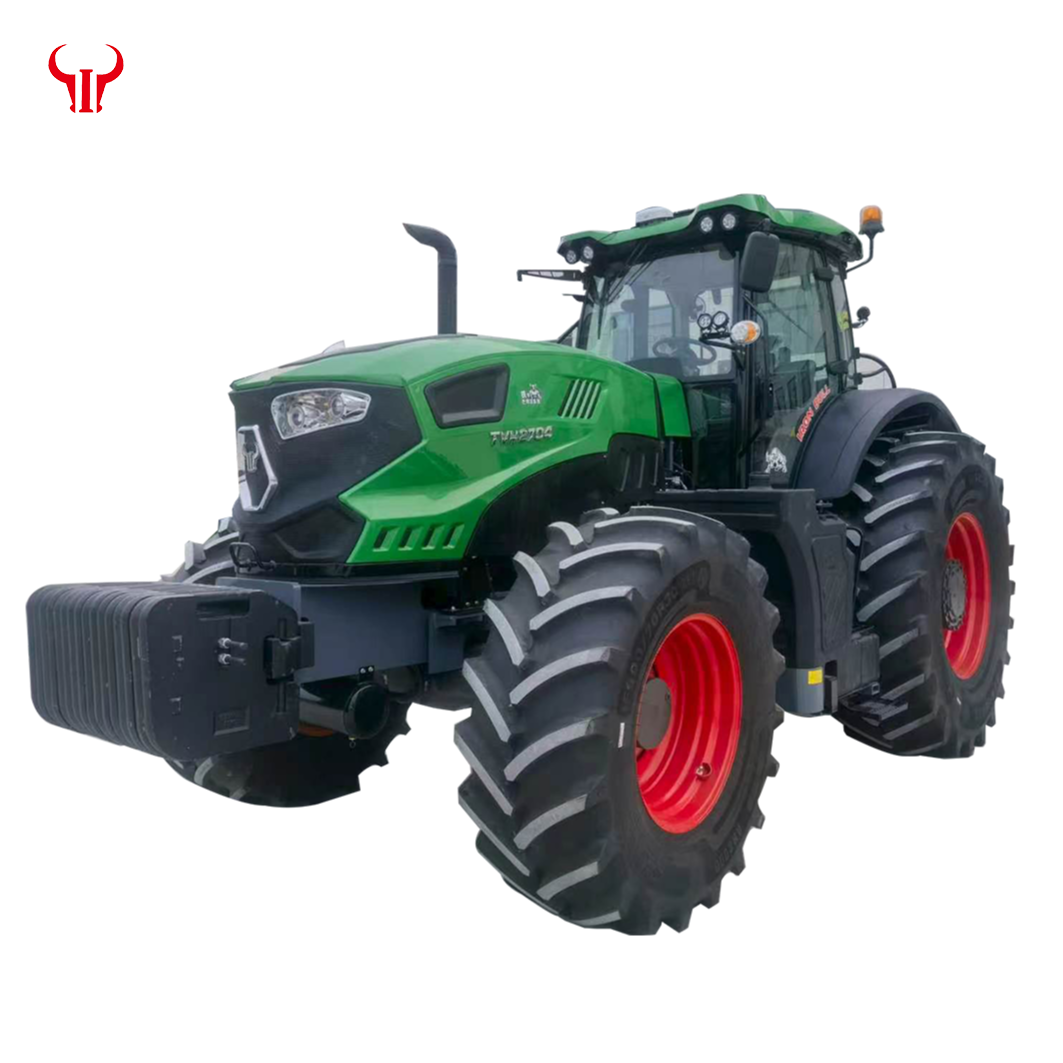

TVH2704-3504 Hybrid Tractor
Hybrid tractors adopt a diesel engine plus motor hybrid drive system. Supported by an intelligent energy management system, it dynamically distributes power according to various working conditions such as heavy loads, light loads, sloped fields and paddy fields.
Product Description
Hybrid tractors adopt a diesel engine plus motor hybrid drive system. Supported by an intelligent energy management system, it dynamically distributes power according to various working conditions such as heavy loads, light loads, sloped fields and paddy fields. The diesel engine operates steadily within its high-efficiency range. Combined with the motor's advantages of high low-speed torque and quick response, the overall fuel saving rate reaches 10%~35% with greatly improved traction. Equipped with stepless speed change, it runs smoothly during operation and effectively reduces labor intensity. It also features regenerative braking for energy recovery.
Product Introduction
| TVH (2704/3004/3504 |
Fuel saving & cost reduction: Overall fuel saving rate: 10%~35% |
Traction improvement: Maximum traction force: 70~119 kN |
No shift jerk, smooth operation throughout. |
Shock-absorbing seat, not easy to get tired during long-time operation |
Suitable for heavy load, light load, sloped fields and other working scenarios. |
Technical Overview & Core Parameters
|
TRACTOR MODEL |
TVH2704 |
TVH3004 |
TVH3504 |
|
HORSE POWER |
270HP |
300HP |
350HP |
|
WHEEL DRIVE |
4X4 |
||
|
ENGINE BRAND |
Hybrid Tractor,Shangchai | ||
|
ROPS |
ROLL BAR AND ROOF/ CABIN |
||
|
DIMENSION |
6120 x 2890 x 3380 MM |
||
|
GROUND CLEARANCE |
480mm |
||
|
WEIGHT |
12400kg | ||
|
WHEEL BASE |
3130 MM |
||
|
WHEEL TREAD |
1904-2288 MM |
||
| Hybrid transmission model | （Power Split）E-CVT-Ⅰ | ||
| Power battery level |
6KWH |
||
| Fuel tank capacity | 700L | ||
|
TIRE |
600/70R30, 710/70R40-360/70R40 |
||
|
PTO |
540/1000 RPM |
||
|
POWER |
221 |
||
